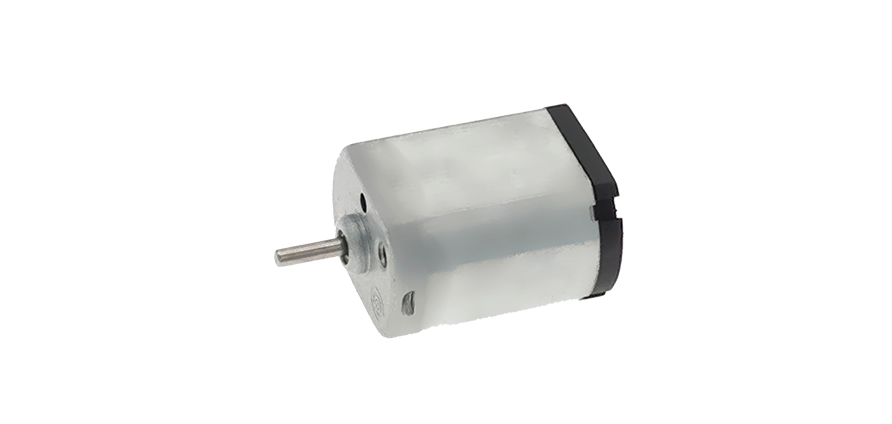

F030K

All our motors are manufactured with the highest standard. Our stringent quality assurance process guarantees peak performance for every motor from day one.

Motor Details

Model : F030K-PN-1860
Voltage : 1.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.203 0.638 1.105 2.008
Speed (rpm) 9775 7417 4888 N/A
Torque (g.cm) N/A 5.2 10.9 21.8
Efficiency (%) N/A 41.7 N/A N/A
Output (W) N/A N/A 0.55 N/A
Model : F030K-PN-1860
Voltage : 1.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.203 0.638 1.105 2.008
Speed (rpm) 9775 7417 4888 N/A
Torque (g.cm) N/A 5.2 10.9 21.8
Efficiency (%) N/A 41.7 N/A N/A
Output (W) N/A N/A 0.55 N/A
Model : F030K-PN-1495
Voltage : 3V
No Load Max Efficiency Max Output Stall
Current (A) 0.141 0.462 826.0 1.511
Speed (rpm) 13292 10182 6646 N/A
Torque (g.cm) N/A 6.1 13.1 26.1
Efficiency (%) N/A 46.1 N/A N/A
Output (W) N/A N/A 0.89 N/A
Model : F030K-PN-1495
Voltage : 3V
No Load Max Efficiency Max Output Stall
Current (A) 0.141 0.462 826.0 1.511
Speed (rpm) 13292 10182 6646 N/A
Torque (g.cm) N/A 6.1 13.1 26.1
Efficiency (%) N/A 46.1 N/A N/A
Output (W) N/A N/A 0.89 N/A
