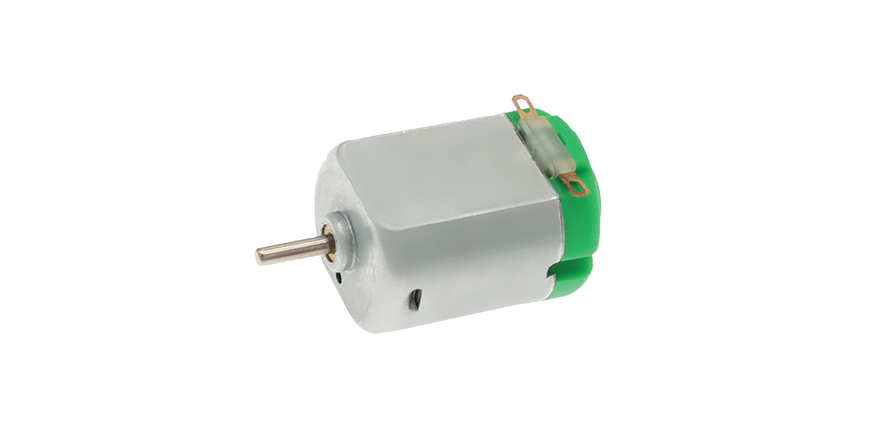

F130C

All our motors are manufactured with the highest standard. Our stringent quality assurance process guarantees peak performance for every motor from day one.

Motor Details

Model : F130C-PN-18100
Voltage : 4.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.219 0.76 1.428 2.636
Speed (rpm) 13922 10807 6961 N/A
Torque (g.cm) N/A 15.2 34.0 67.9
Efficiency (%) N/A 49.3 N/A N/A
Output (W) N/A N/A 2.43 N/A
Model : F130C-PN-18100
Voltage : 4.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.219 0.76 1.428 2.636
Speed (rpm) 13922 10807 6961 N/A
Torque (g.cm) N/A 15.2 34.0 67.9
Efficiency (%) N/A 49.3 N/A N/A
Output (W) N/A N/A 2.43 N/A
Model : F130C-PN-2270
Voltage : 4.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.352 1.147 2.044 3.735
Speed (rpm) 19996 15299 9998 N/A
Torque (g.cm) N/A 14.9 31.7 63.4
Efficiency (%) N/A 45.3 N/A N/A
Output (W) N/A N/A 3.25 N/A
Model : F130C-PN-2270
Voltage : 4.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.352 1.147 2.044 3.735
Speed (rpm) 19996 15299 9998 N/A
Torque (g.cm) N/A 14.9 31.7 63.4
Efficiency (%) N/A 45.3 N/A N/A
Output (W) N/A N/A 3.25 N/A
Model : F130C-PN-18100
Voltage : 6V
No Load Max Efficiency Max Output Stall
Current (A) 0.229 0.883 1.816 3.404
Speed (rpm) 18770 14904 9385 N/A
Torque (g.cm) N/A 17.9 43.3 86.7
Efficiency (%) N/A 51.5 N/A N/A
Output (W) N/A N/A 4.17 N/A
Model : F130C-PN-18100
Voltage : 6V
No Load Max Efficiency Max Output Stall
Current (A) 0.229 0.883 1.816 3.404
Speed (rpm) 18770 14904 9385 N/A
Torque (g.cm) N/A 17.9 43.3 86.7
Efficiency (%) N/A 51.5 N/A N/A
Output (W) N/A N/A 4.17 N/A
Model : F130C-PN-2270
Voltage : 6V
No Load Max Efficiency Max Output Stall
Current (A) 0.376 1.458 3.016 5656.0
Speed (rpm) 25690 20424 12845 N/A
Torque (g.cm) N/A 22.0 53.6 107.1
Efficiency (%) N/A 52.6 N/A N/A
Output (W) N/A N/A 7.06 N/A
Model : F130C-PN-2270
Voltage : 6V
No Load Max Efficiency Max Output Stall
Current (A) 0.376 1.458 3.016 5656.0
Speed (rpm) 25690 20424 12845 N/A
Torque (g.cm) N/A 22.0 53.6 107.1
Efficiency (%) N/A 52.6 N/A N/A
Output (W) N/A N/A 7.06 N/A
Model : F130C-NN-18100
Voltage : 4.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.272 0.823 1.38 2.488
Speed (rpm) 19195 14426 9598 N/A
Torque (g.cm) N/A 10.3 20.7 41.4
Efficiency (%) N/A 41.1 N/A N/A
Output (W) N/A N/A 2.04 N/A
Model : F130C-NN-18100
Voltage : 4.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.272 0.823 1.38 2.488
Speed (rpm) 19195 14426 9598 N/A
Torque (g.cm) N/A 10.3 20.7 41.4
Efficiency (%) N/A 41.1 N/A N/A
Output (W) N/A N/A 2.04 N/A
Model : F130C-NN-2270
Voltage : 4.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.445 1.397 2.414 4.383
Speed (rpm) 27430 20802 13715 N/A
Torque (g.cm) N/A 12.4 25.7 51.5
Efficiency (%) N/A 42.2 N/A N/A
Output (W) N/A N/A 3.62 N/A
Model : F130C-NN-2270
Voltage : 4.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.445 1.397 2.414 4.383
Speed (rpm) 27430 20802 13715 N/A
Torque (g.cm) N/A 12.4 25.7 51.5
Efficiency (%) N/A 42.2 N/A N/A
Output (W) N/A N/A 3.62 N/A
Model : F130C-NN-18100
Voltage : 6V
No Load Max Efficiency Max Output Stall
Current (A) 0.296 0.959 1.702 3.109
Speed (rpm) 25090 19174 12545 N/A
Torque (g.cm) N/A 11.8 25.0 50.0
Efficiency (%) N/A 40.3 N/A N/A
Output (W) N/A N/A 3.22 N/A
Model : F130C-NN-18100
Voltage : 6V
No Load Max Efficiency Max Output Stall
Current (A) 0.296 0.959 1.702 3.109
Speed (rpm) 25090 19174 12545 N/A
Torque (g.cm) N/A 11.8 25.0 50.0
Efficiency (%) N/A 40.3 N/A N/A
Output (W) N/A N/A 3.22 N/A
